PV mini-grids provide electricity to 300 villages in Senegal

Erik Klüglingby Erik Klügling (guest post), , 4 Comments

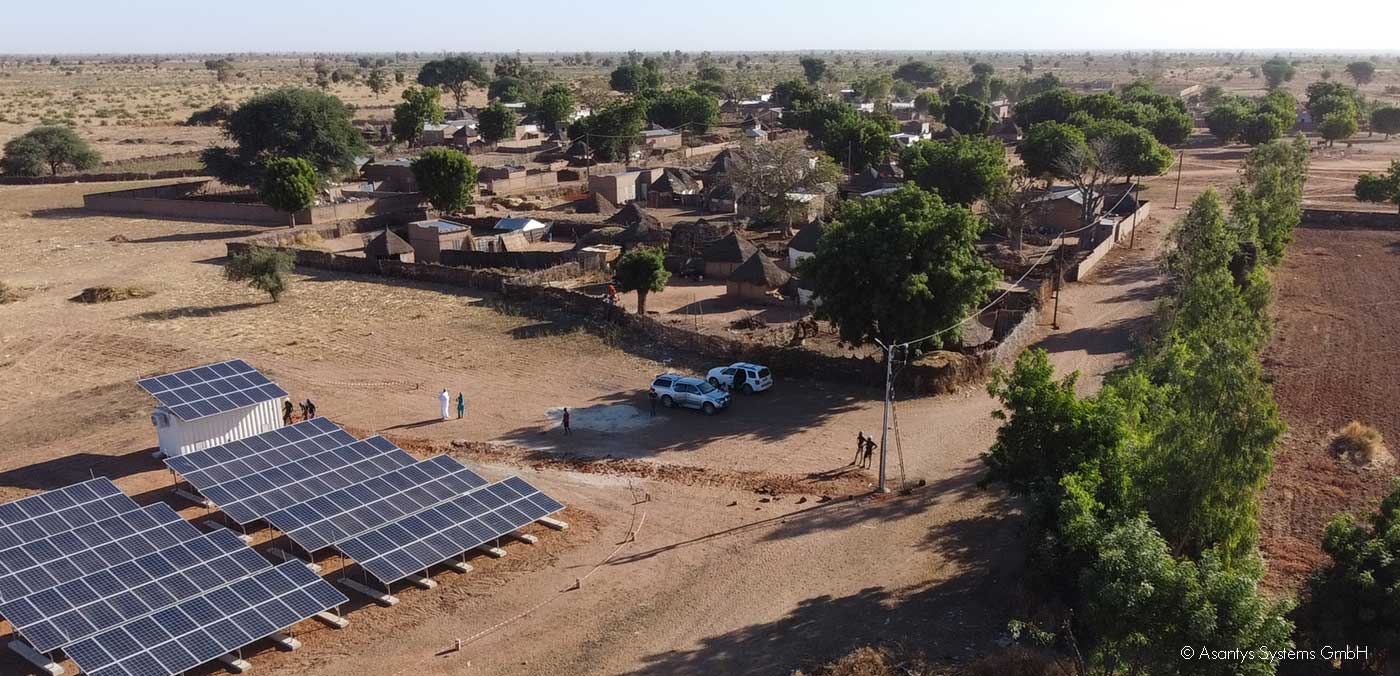

Senegal wants to give its population permanent access to electricity by 2025. However, half of the country’s approximately 17 million residents live in rural areas, sometimes a long way from the national utility grid. The government is therefore looking to decentralized and environmentally friendly energy solutions. The government’s ASER300 project is bringing electricity to 300 villages all around the country with mini-grids, which include PV modules, inverters, batteries, and cooling systems.

Drought, arid and saline soil, lack of rainfall, forest dieback – Senegal is feeling the full impact of climate change. This has consequences that go beyond the population’s health and food security. More and more young people in rural areas are also migrating to big cities in search of better prospects. The agriculture sector, which already has enough problems as a result of climate change, is now also facing a labor shortage. The democratic country on Africa’s west coast has therefore decided to massively expand its infrastructure in order to offer young people better prospects again. One of its aims is to give everyone in Senegal permanent access to the utility grid by 2025. The main focus is on expansion in rural areas, such as with the ASER300 project, which is bringing electricity to 300 villages using mini-grids. Best of all, the technology for the energy supply comes inside a standard shipping container. Once in place, all it needs is sunshine. And there is plenty of that in Senegal.

Bringing Electricity to 120 villages in Senegal - Factory and Senegal Yard Updates

Mini-grids for ASER300: Electricity supply from a container

A mini-grid (also known as an off-grid system or stand-alone grid) is a decentralized electricity supply. It provides a reliable supply of solar power for remote regions without access to the utility grid.

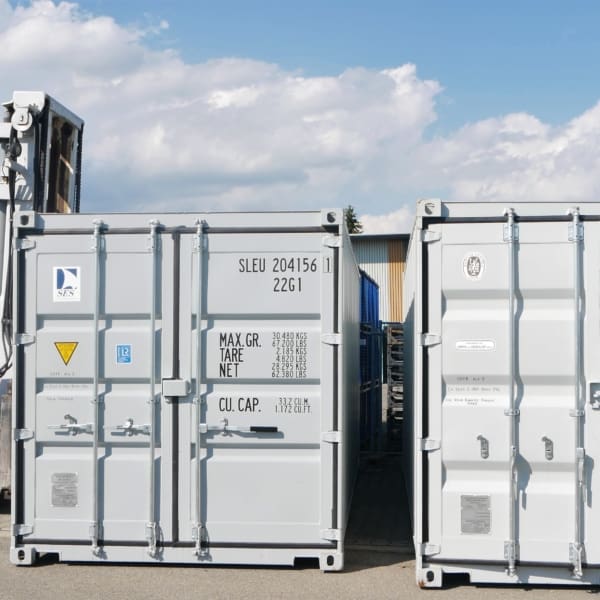

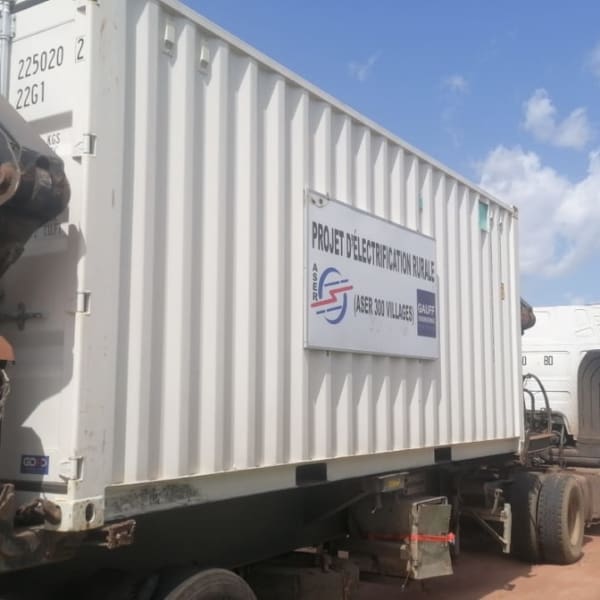

Asantys Systems GmbH assembles the container systems, before they are shipped from Hamburg to Senegal. © Höhne

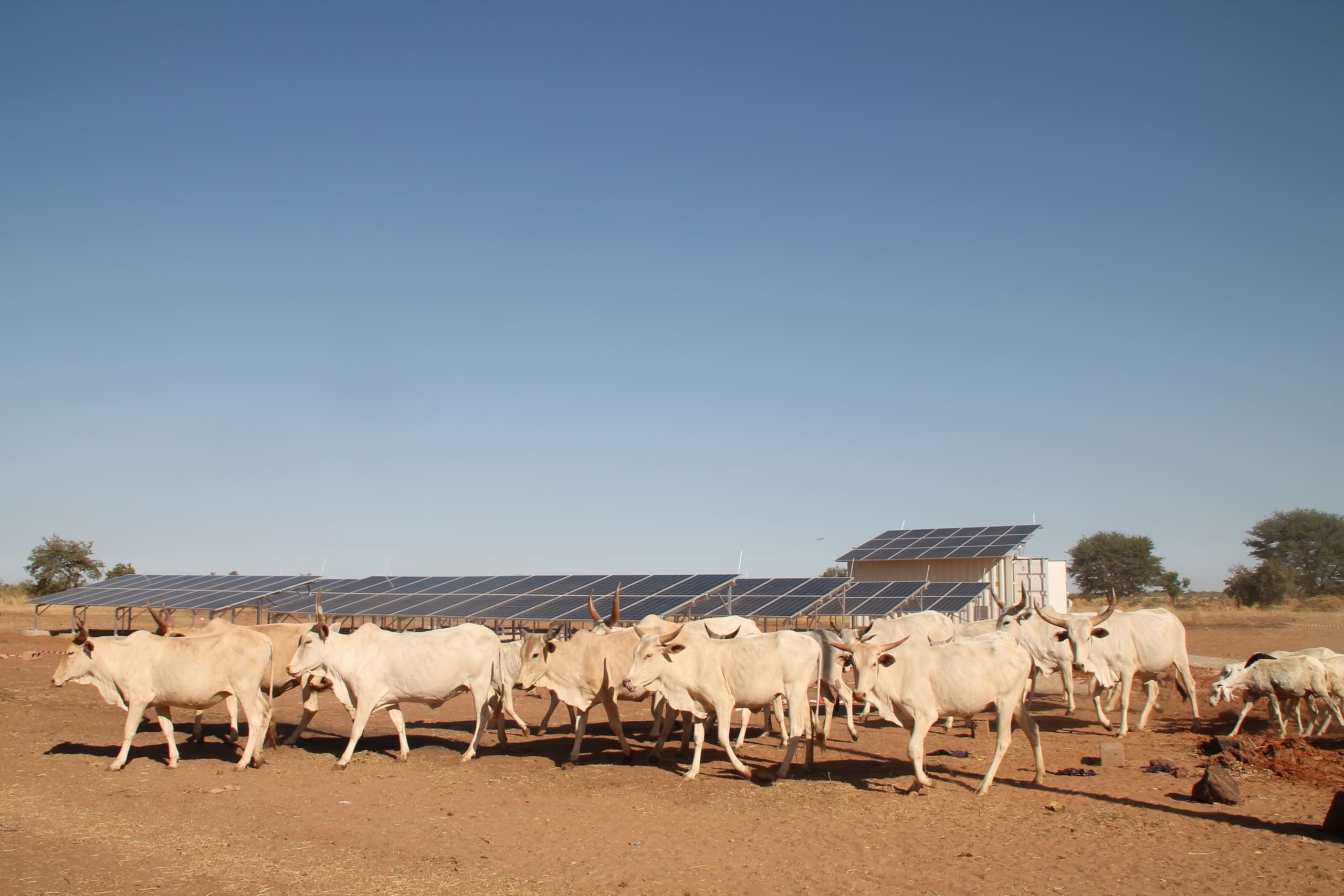

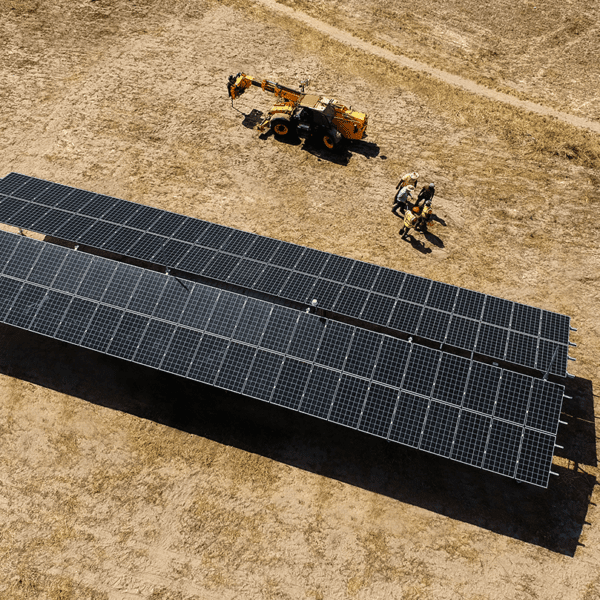

The ASER300 project in Senegal uses mini-grid systems from Asantys Systems and Off-Grid Europe with SMA’s Sunny Island battery inverters. The system comprises PV modules, PV and battery inverters, batteries, control technology and a cooling system. The practical element is that all this fits inside a typical shipping container, which serves as technical control room, as a battery-storage system, and for the shipping of all the components. Special air-conditioning technology provides optimum conditions despite extreme external temperatures of 40 degrees Celsius in the shade. The PV modules from the Off-Grid Europe version are attached to the roof of the container, where they provide the system with shade and are better protected from dust and dirt. The inverter converts the direct current from the PV system, from where it is fed directly into the grid. Excess electric current is stored in powerful batteries, ensuring a constant electricity supply.

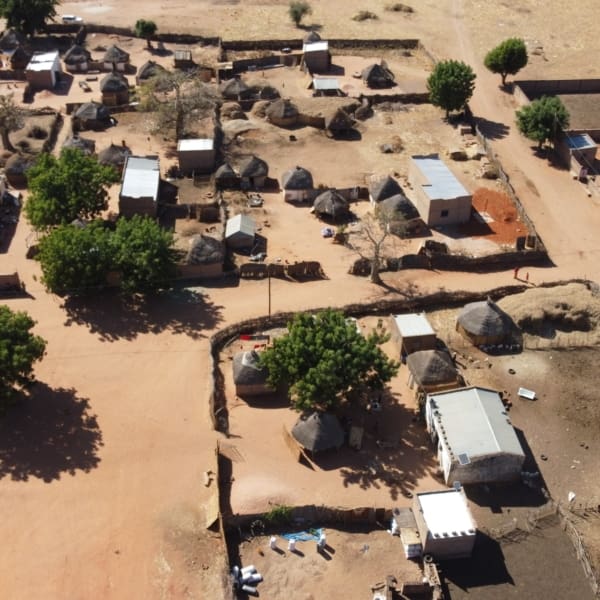

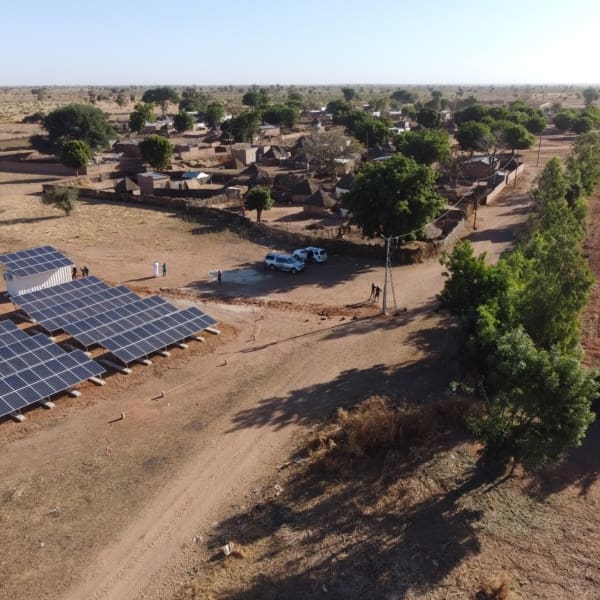

Asantys ASER 300 Programm Senegal_first village


Solar power for better education and safety


Every village receives its own mini-grid with 15 to 45 kWp of power, including a battery-storage system. “Health and education systems, in particular, stand to benefit,” said Sawdiatou Mbaye, who helps manage the local coordination and communication of the project for Asantys Systems. Critical infrastructure can be in continuous operation, streetlights increase safety at night, and electric water pumps provide clean drinking water. Home appliances, such as refrigerators, can be used non-stop, and smartphones can be charged at all hours.

“Productivity increases, and communication, information and training opportunities, in particular, are improved,” ASER300 project director Lutz Ekhoff from GAUFF Engineering said (see picture left side together with a KfW representative, the Mayor of Diacksao Saloum and Modou Mbaye). © GAUFF Engineering

“Productivity increases, and communication, information and training opportunities, in particular, are improved,” said Lutz Ekhoff, ASER300 project director from GAUFF Engineering. Sustainable, local added value is another important component: The mini-grids are set up on-site by local construction firms.

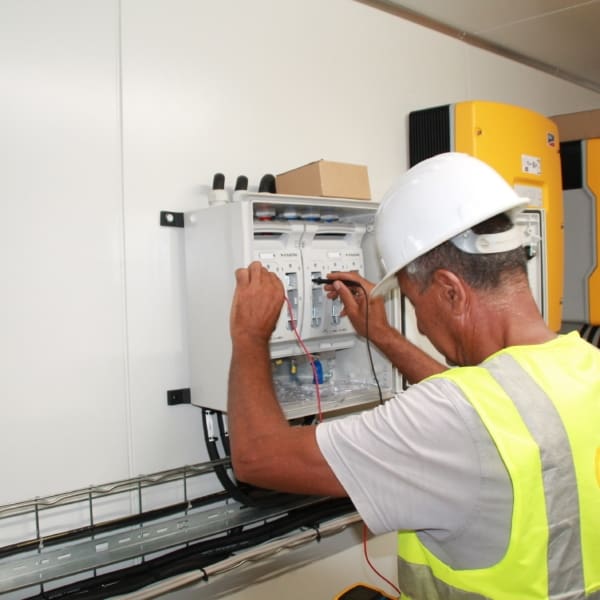

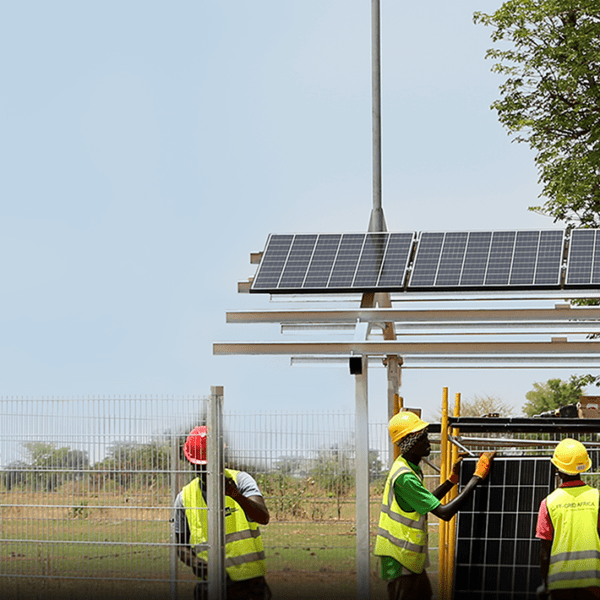

GAUFF Engineering and the German Society for International Cooperation (GiZ) train local qualified persons and electricians to work with photovoltaics and off-grid systems. And if the local electricity demand increases, the systems can be flexibly expanded at any time.

AC coupling of inverters is of advantage in the projects: “If the power requirement in the village increases, the system can be expanded to up to 36 devices at any time,” says Tim Malzfeld from SMA Altenso.

This is why the project purposely chose the AC-connected system instead of the hybrid inverter originally planned. “Even if only two or three appliances are used at first, the system can be expanded to up to 36 appliances at any time,” said Tim Malzfeld from SMA Altenso.

COVID-19 and the “last mile” cause delays but are no obstacle

All villages were supposed to be equipped with the sustainable electricity supply in 2023. But as the container systems left port in Hamburg for Dakar, Senegal’s capital city, in 2020, international supply chains were temporarily paralyzed by COVID-19 lockdowns. Instead of a one- to three-week voyage, depending on the route and stops along the way, it would now take at least four weeks.


The challenges of the “last mile”.© Asantys Systems GmbH

Tip: In the magazine “Sonnenallee” you can find more information about the positive effects of the ASER300 project.

The notorious “last mile” also harbors sometimes unforeseen challenges. Lutz Ekhoff has experienced this first-hand: “Off the national highways, most roads are dirt tracks made of sand and laterite, which makes transport and construction logistics more challenging.“ Then comes the rainy season. From April to November, severe weather is a common occurrence in Senegal. The heavy rainfall also affects the transport network, blocking roads or “simply washing them away. Trucks can then get stuck for days, sometimes even weeks,” said Sawdiatou Mbaye.

Magical moments and new stages in life

Mbaye knows the trouble is always worth it, as the installation of the mini-grids often marks the start of a new chapter in the villagers’ lives. For example, in spring 2021 in Diacksao Saloum near Dakar, when one of the first mini-grid systems was set up for the 1,400 villagers. Sawdiatou recalls the “magical moment when the streetlights turned on the first time, and the villagers danced in the light and embraced each other happily.” In November 2022, another 44 villages in the Kaffrine, Velingara and Kolda regions were electrified. The electrification of a further 132 villages is near completion. In total, around 180,000 people are expected to benefit from solar power by 2024 – and escape their dependence on environmentally harmful fossil-based energy sources such as diesel generators.


The ASER300 project at a glance

Project Scope

  • 60,000 m² of PV modules in 600 container systems (PV mini-grids) with total power of 9 MWp (megawatt peak), over 800 km of power lines, 3,600 LED streetlights
  • Education: 4,800 hours of training and education for local electricians and businesses on how to use solar technology provided by GiZ and GAUFF Engineering


  • November 30, 2018: Approval from KFW IPEX
  • July 1, 2019: Kick-off
  • January 2020: PV components delivered
  • April to May 2020: Selection of 20 villages
  • December 2020: Start of system implementation
  • November 2022: 44 villages complete, 132 villages near completion
  • 2024: Planned project completion
